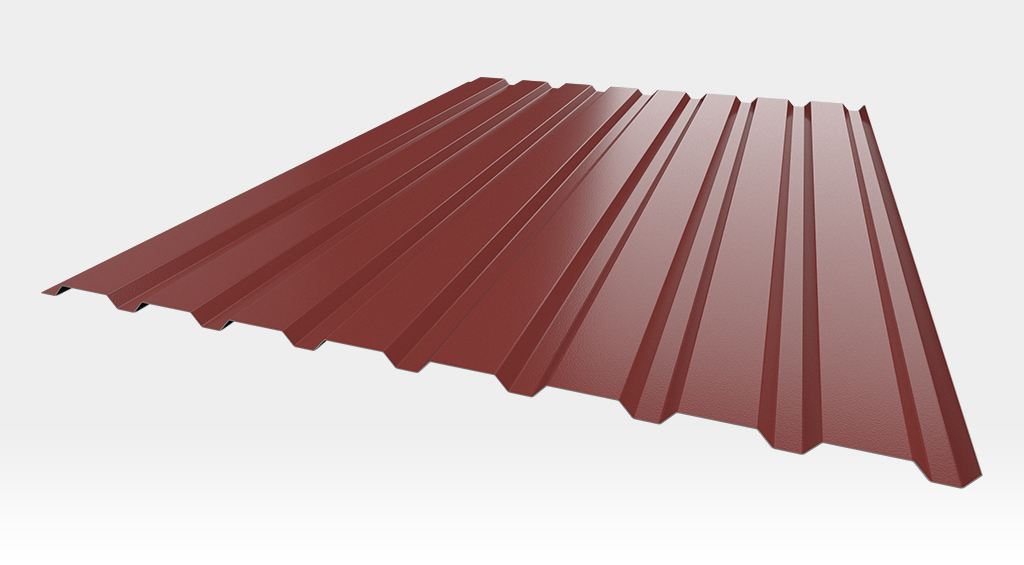

BPE 18

Our high-volume classic with a classic wooden panel look. Borga BPE 18 is used for covering walls on various buildings. Its optimised covering width makes it one of our most economical solutions. The asymmetrical shape with wide upper ribs and narrow bottom grooves gives the facade an ageless and classic appearance.

The profile can be installed either horizontally or vertically and is well suited for both small and large surfaces.

The steel core is passivated and painted with a primer and a top layer in polyester P30, P50, MAT or our premium Metallic Colofer® City Lights series.

Available thicknesses: 0.4 mm / 0.45 mm / 0.5 mm / 0.6 mm



Nominal thickness tnom mm 0.5 0.6
Thickness for calculation tber mm 0.441 0.538
Mass m kg/m2 4.3 5.1
Yield strength fty N/mm2 250 250

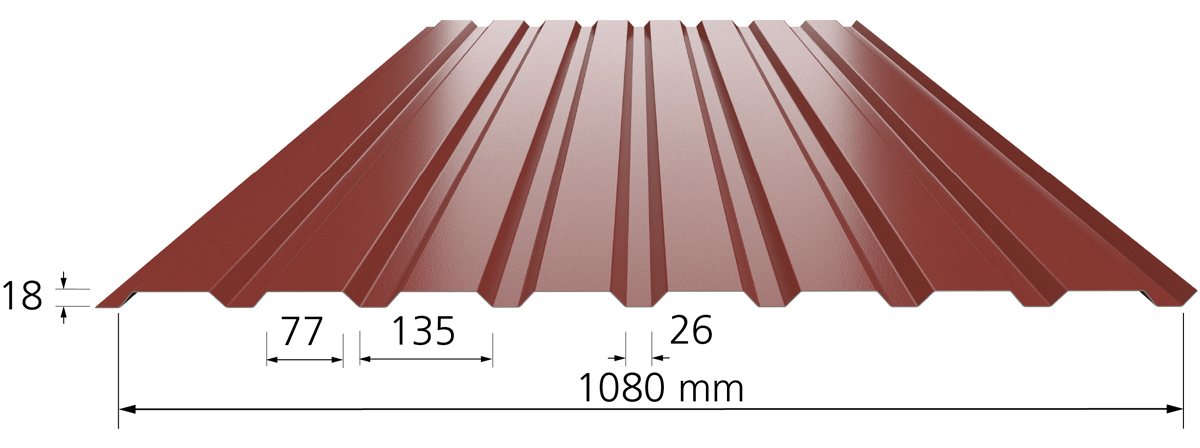

Hight mm 18 18
Cover width mm 1080 1080
Min. length mm 500 500
Max. length mm 9000 10000
Support reaction, end support Rd kN/m 3.45 5.06
Support reaction, 50 mm support width Rd kN/m 11.80 16.98
Support reaction,100 mm support width Rd kN/m 15.50 22.12
Shear buckling capacity, flange Vf kN/m 15.9 28.8
Shear buckling capacity, rib Vw kN/m 63.7 77.7
Shear buckling capacity, global L2Vgd kN/m 19.7 26.6
Torque, positive pressure effect Md kNm/m 0.434 0.578
Moment of inertia, positive pressure effect Idef mm4/mm 16.1 21.0
Moment, negative pressure effect Md kNm/m 0.478 0.630
Moment of inertia negative pressure effect Idef mm4/mm 23.4 30.4
Walkability (c:c) calculated at a person weight of 100 kg, 2-bay, roof slope<14°, fastened m 0.41 0.50
Walkability (c:c) calculated at a person weight of 100 kg, >2-fack, roof slope <14°, fastened m 0.48 0.60
Walkability (c:c) calculated at a person weight of 100 kg, 2-fack, roof slope <14°, not fastened m 0.33 0.41

Profile data is calculated according to the Eurocode.

Color variation
Standard Colors

White 9106

Light Grey 7035

Silver 9006

Graphite 0087

Black 9005

Beige 1015

Yellow 0453

Reseda Green 6011

Green 0510

Sky Blue 5015

Glowing Blue 5010

Brick Red 8004

Red 0302

Cherry Red 3009

Brown 8017


New York Silver-

Dubai White-

Moskau Grey-

New York Black-

Moskau Red-

Premium Colors

Dubai Blue-

Tokyo Violet

Borga Color Map standard
  • Color Map Standard
  • Color Map Premium
